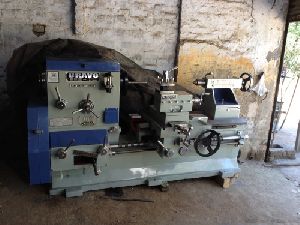

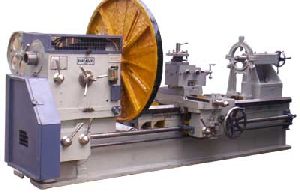

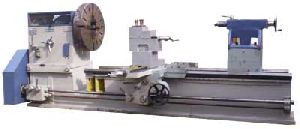

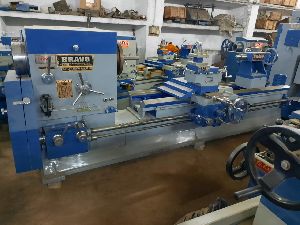

Cone Pulley Type Lathe Machine


Lathe Machine (40 Feet) Wheel Turning Lathe Machine Extra Heavy Duty Lathe Machine Big Dia Pipe Threading Lathe Machine Revolving Headstock Lathe Machine

Cone Pulley Type Lathe Machine, offered by us, is used for many purposes in various industries. Heavy Duty Cone Pulley Type Lathe Machine is very helpful in enhancing the business of the clients with its high performance. Use of optimum quality raw materials ensures the high speed and durability of our Heavy Duty Cone Pulley Type Lathe Machine. Due to the compilation of best features in machine, we have enlisted among the leading Cone Pulley Precision Lathe Machine Manufacturers.



Specifiacations

Model No BLM - 1200 BLM - 1400 BLM - 1600 BLM - 1800 BLM - 2000 BLM - 2200 BLM - 2400 BLM - 2600 BLM - 3200 BLM - 4000
Length of bed 4' - 6" 6' - 0" 8' - 0" 10' - 0" 12' - 0" 16' - 0" 20' - 0" 26' - 0" 32' - 0" 40' - 0"
Width of bed 12" 14" 16" 18" 20" 22" 24" 26" 32" 40"
Height of Centre 10" 12" 14" 16" 18" 20" 22" 24" 30" 36
Spindle - Hallow 02" 2.5/8" 3.1/8" 3.5/8" 4.1/8" 4.1/8" 4.1/8" 4.1/8" 4.1/8" 4.1/8"
Swing in Gap (Dia) 28" 35" 40" 48" 50" 57" 63" 67" 80" 100"
Swing over Saddle (Dia) 14" 18" 20" 24" 26" 30" 32" 36" 46" 56"
Admit Between Centers 21" 40" 48" 72" 95" 135" 180" 240" 300" 384"
No. of speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds 06 Speeds
Lead Screw Dia 37 mm 45 mm 50 mm 52 mm 54 mm 56 mm 56 mm 56 mm 56 mm 56 mm
Deg - Check Recommended 10" 14" 16" 18" 20" 22" 24" 30" 36" 48
Motor H.P. Recommended 2 H.P 2 H.P 3 H.P. 3 H.P. 5 H.P 7.5 H.P 7.5 H.P 7.5 H.P 10 H.P 10 H.P
Morse Taper M.T.3 M.T.3 M.T. 4 M.T. 4 M.T. 4 M.T.5 M.T.5 M.T.5 M.T.6 M.T.6
Net Weight Packed 900 KGS 1450 KGS. 1750 KGS 2300 KGS. 3300 KGS 4500 KGS. 7000 KGS. 8000 KGS. 17000 KGS. 20000 KGS.



Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
