Milling Machine


Image 01 Image 02 Image 03

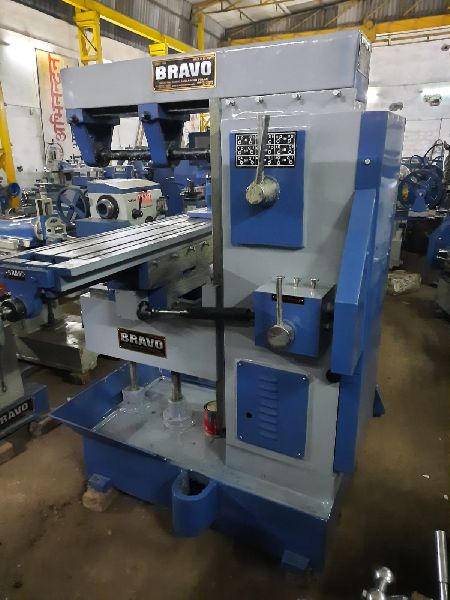

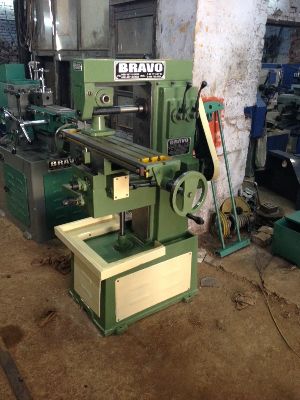

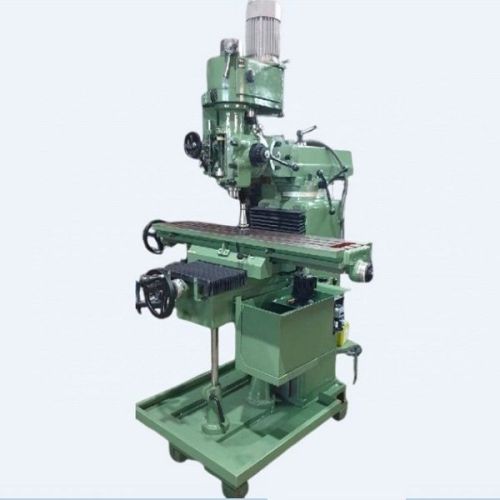

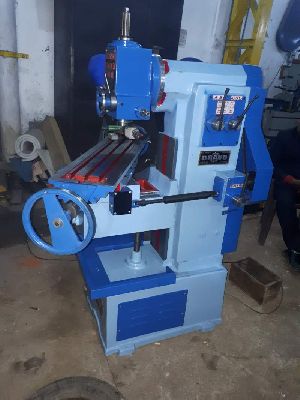

Our company has been manufacturing Mechanical Milling Machine for quite a long time; we use optimum quality Grade 1 castings for fabricating milling machines. Machine table and saddle are made out of castings containing nickel, chrome, etc. Spindle of Horizontal Milling Machine is hardened where as all shafts and screws are made of alloy steel which is duly heated and grounded. The head stock of machine is gilled with lubrication system and its feed gear system is boil bath system. Backlash elimination on table-lead-screw and its knee top is totally covered. The accuracy of this machine is as per ISI charts. Electrical used in milling machine is procured from reputed manufacturers having ISI mark. Machines are supplied in two tone Duco paint finish. We are counted among the top ranking Milling Machine Manufacturers from India.



Specifications

Model no. Bmm-0A Bmm-1 Bmm-1 ½ Bmm-2 Bmm-3
Surface of Table 32"×7" 42"×9" 48"×10" 52"×11" 60"×12"
No. of Tee-Slots 3 3 3 3 3
Size of Tee-Slots ½" ½" ½" 5/8" 5/8"
Swivel of Table 45ºC 45ºC 45ºC 45½ 45ºC
Longitudinal Traverse 15" 21" 24" 26" 30"
Cross Traverse 6" 7" 8" 10" 12"
Vertical Traverse 13" 15" 16" 22" 26"
Standard Arbor 1" 1" 1" 1" 1"
Taper of Spindle ISO-30 ISO-40 ISO-40 ISO-40 ISO-40
RPM Of Spindle 95-650 95-650 65-680 60-700 50-750
No. of Spindle Speed 6 6 9 9 9
Electric Motor Require 1 H.P 2 H.P 2 H.P 3 H.P 5 H.P
Weight Approx 500 Kgs 1000 Kgs 1250 Kgs 1700 Kgs 2050 Kgs



Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
