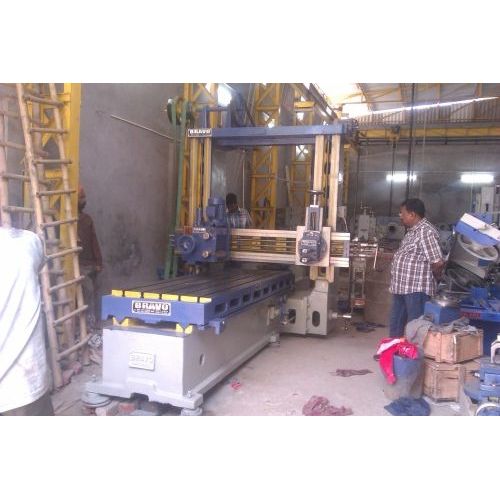

Planner Machine manufactured by our company is designed specifically with rigid double column and bore/rail brackets system. The bed components of this planner machine are manufactured from heavy duty alloy gray casting for proper strength and long wearing qualities. The Heavy Duty Planner Machine exported and supplied by us comes with six gears made from steel and it also contains cross rail for easy operation. Its tool posts and columns make it unique and widely demanded. We have marked our prominence as one of the foremost Two Side Planner Machine Exporters from India.

Features :-

Design : It is very rigid double column and body bore / rail brackets system Planer fitted with gun metal bushes / ball bearing.

Bed : Bed is made out of heavy duty alloys grey casting having proper strength and long wearing qualities. it is deep box section and tied together at frequent intervals by double wailed bridge pieces extended to the bottom of the bed. The two 'V' guides are accurately hand scrapped upto extreme limits.

Table : It is of box section with hand scrapped 'V' ways to bear heavy load. It is heavily ribbed and the Rack provided in it is spur Milling Cut and non Wearing quality for smooth running. Adequate number of 'T' slots are provided to clamp the work piece precisely and securely.

Gears : All the six gears are of Steel, Oil Trey tank is provided to Lubricate oil while in working Gun Metal Bushes or ball bearing are provided to all the shafts as required.

Cross Rail : It is of box section heavily ribbed with large surface and is suitable for both hand and automatic horizontal and vertical feeds. Auto lift without electrical is provided.

Tool Posts : These are made out of close grain casting and steel to stand heavy cut, special type of Dog Clutch Fiitings are provided for vertical lifting of the tool post. It can be driven both manually and mechanically.

Columns : Uprights are of rigid box section firmly, I botled on the bed for precise alignment are capable of absorbing the Heaviest shocks without vibration. Location pins are provided to help refit machine accuratly after once it is dismantled.



Technical Data

Sizes Ft. mm 4' 1219 6' 1828 8' 2438 10' 3048 12' 3657 14' 4267 16' 4876
Length of Bed Vs. Length of Table Width of Table Stroke of Table Planning Width Height Under Cross Rails Cutting Speed P.M Return Speed P.M Method of Driving No. of tool posts H.P required Ft. mm ft. mm Inches mm Ft. mm Inches mm Inches Inches 61/4 1905 41/2 1370 24" 609 4' 1220 30" 762 30" 410 610 1 2 HP 91/42820 61/21980 27" 685 6' 1830 36" 915 36" 915 410" 610" 1 3 HP 121/4 3735 81/22590 31" 787 8' 2438 48" 1220 48" 1220 410" 610" 2 5 HP 151/44670 101/2 3200 33" 838 10' 3048 54" 1370 54" 1370 410" 610" 2 7.1/2 HP 181/4 5565 121/2 3810 36" 914 12' 3657 60" 1525 60" 1525 610" 2 7.1/2 HP 21 6470 141/2 4420 36" 914 14' 4267 60" 1525 60" 1525 410" 610" 2 7.1/2 HP 241/4 7390 161/2 5030 36" 914 16' 4876 60" 1525 60" 410" 610" 2 10 HP

Extra Accessories : Side Tool Post, Automatic lubrication, Grinding Attachment, Three Speed Gear Box & Milling Attachment can be provided a extra cost.



Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
