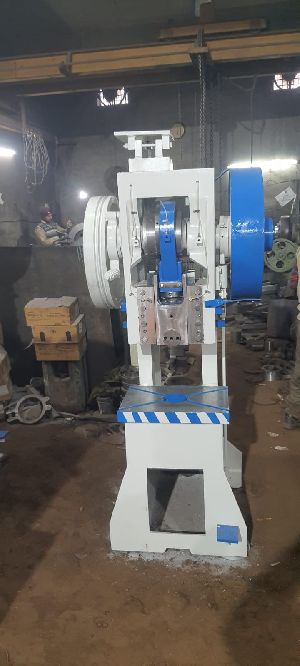

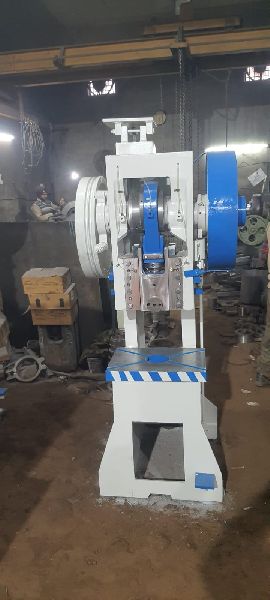

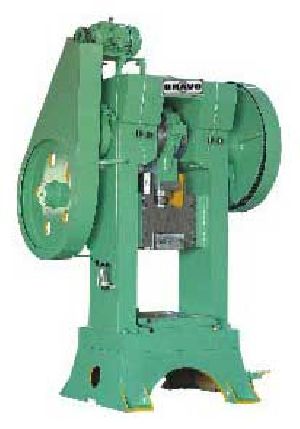

Power Press Machine
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Power Press |
| Color | Mulit Colour |
| Voltage | 110V, 220V |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
We offer a gamut of precision engineered heavy duty Power Press Machine that is used at large in various industries. We use optimum quality raw material for fabricating top class machinery and assuring that they can adhere to international quality standards. Mechanical Power Press Machine offered by us is known for its trouble free operation, low maintenance and high speed. Because of its various salient features our company has emerged as one of the well known Power Press Machinery Exporters and manufacturers, based in India.
Note : Dimensions, Design, Weight, & Specifications Can Be Change as Market Demands or Further Improvement of Machine Without Notice.
Specifications
|
Model |
BMT |
10 |
20 |
30 |
50 |
75 |
100 |
150 |
200 |
|
Capacity |
Tone |
10 |
20 |
30 |
50 |
75 |
100 |
150 |
200 |
|
Stroke Length (Adjust) |
M.M. |
51 |
36 |
76 |
90 |
102 |
127 |
152 |
152 |
|
Shut Height Overbed Stroke Down Adj. up.) |
M.M. |
225 |
267 |
305 |
342 |
380 |
406 |
432 |
483 |
|
Bed Area (LrxFB Stand) |
M.M. |
508x330 |
584x381 |
660x381 |
762x508 |
864x559 |
940x660 |
1110x737 |
1220x813 |
|
Gear Dia |
M.M. |
508 |
610 |
711 |
762 |
864 |
965 |
1067 |
1220 |
|
Wheel Dia |
M.M. |
533 |
660 |
711 |
787 |
914 |
990 |
1067 |
1220 |
|
Bolster Thickness |
M.M. |
65 |
70 |
75 |
75 |
90 |
90 |
112 |
112 |
|
Opening In Bed |
M.M. |
108 |
114 |
132 |
159 |
184 |
208 |
235 |
260 |
|
Hid in Slide for Die Clamping |
M.M. |
28 |
32 |
32 |
38 |
44 |
51 |
56 |
56 |
|
Strokes Per Minute |
M.M. |
60 |
55 |
50 |
50 |
40 |
35 |
35 |
30 |
|
Height From Floor to Top of Bed |
M.M. |
72 |
762 |
787 |
787 |
914 |
914 |
914 |
914 |
|
Main Motor |
M.M. |
02/01/40 |
31440 |
03/01/40 |
05/01/40 |
7.5 / 1440 |
10/01/40 |
15 / 1440 |
20 / 1440 |
|
Appx. Weight |
M.M. |
1000 |
1500 |
2200 |
3400 |
4800 |
6000 |
8000 |
11000 |
| Model | BMT | 25 | 50 | 75 | 100 | 150 | 200 | 250 |
| Capacity | Tone | 25 | 50 | 75 | 100 | 150 | 200 | 250 |
| Stroke Length (Adjust) | M.M. | 63 | 75 | 90 | 114 | 127 | 152 | 152 |
| Shut Height Overbed Stroke Down Adj.Up.) | M.M. | 216 | 280 | 291 | 318 | 335 | 406 | 559 |
| Bed Area (LrxFb) Stand | M.M. | 432x406 | 508x482 | 609x559 | 686x635 | 737x686 | 889x812 | 1016x914 |
| Gear Dia | M.M. | 610 | 711 | 762 | 864 | 1066 | 1220 | 1371 |
| Wheel Dia | M.M. | 711 | 787 | 914 | 990 | 1066 | 1220 | 1371 |
| Bolster Thickness | M.M. | 63 | 76 | 76 | 102 | 102 | 102 | 127 |
| Opening In Bed | M.M. | 132 | 158 | 175 | 200 | 225 | 250 | 300 |
| Hide in Slide For Die Clamping | M.M. | 32 | 32 | 38 | 44 | 51 | 57 | 63 |
| Strokes Per Minute | M.M. | 55 | 50 | 45 | 40 | 40 | 35 | 30 |
| Height From Floor To Top of Bed | M.M. | 02/01/40 | 03/01/40 | 05/01/40 | 7.5/1440 | 10/01/40 | 20/1440 | 25/1440 |
| Main Motor | M.M | 762 | 787 | 787 | 787 | 812 | 812 | 812 |
| Appx. Weight | M.M | 1300 | 2000 | 3000 | 3800 | 5000 | 8000 | 12000 |
As the Machines & Accessories are constantly being improved. We reserve the right change the design & specifications
- Standard Equipments
- Single shot lubircator.
- Ejector equipment on side.
- Non Repeat mechanism for rolling key clutch above 50 Tons.
- Bolster with bolts.
- Gard for gear & fly wheel.
- One Rolling key.
- Motor Pully.
Accessories At Extra Cost
- Slide balance
- Peneumatic Clutch
- Die cusion
- Roll Feed.
- Foundation bolt.
- Shoke Counter.
- Set of wrenches, tommy bars.
Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
