HomeProducts Shaper Machines


We provide a large gamut of highly efficient Shaper Machines that is immensely used in various sectors. We stand in the midst of dominant Shaper Machinery Manufacturers and Suppliers in India. Our Metal Shaper Machine is highly appreciated in the national and international market due to some of its distinctive features. Its salient features are condensed construction, high speed and long utility life. Our industrial shaper machine is manufactured from the high grade raw materials in conformity with various quality standards. Being a user friendly machine, it can be very easily operated and handled. A low maintenance machine, it provides brilliant performance in tough conditions.

Also Available

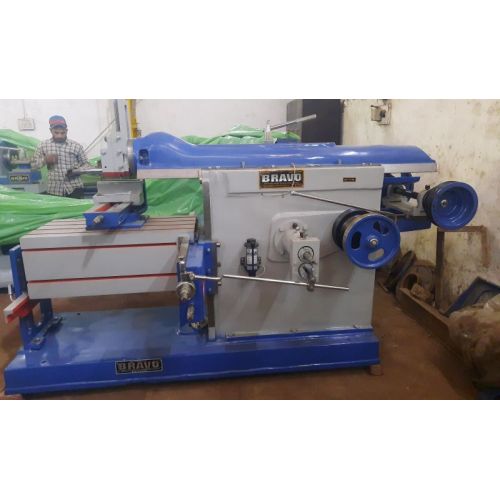

  • Cone Pilley Drive Shaping is Also available from 18" Stroke to 36" Stroke
  • All Geared Heavy Duty Shaping Machine with 3-Guideways Slide model SH-24 to 36



Specifications in MM

Capacity12"18"24"26"30"32"36"42"
Length of Ram Stroke3054576106607628159151070
Length of Ram660990121913251378161017402100
Length & Width of Ram Bearing660x178762x267914x279914x2791040x2791135x3051190x3901600x390
Max & Minimum Distance from Table to Ram257x41407x89457x89485x89508x114500x140521x140521x140
Table
Working Surface of Table305x228407x292483x330515x330610x362380x810457x915560x1050
Max. Table Travel-Horizontal4195086106607628108701070
Max Table Travel-Vertical140330375432432390390457
Angular Movement of Table On Either Side160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R
Tool Head
Maximum Size of Tool Shank Accommodated16x2232x1651x2151x2151x2138x2138x21x38x25
Max. vertical Travel of Tool Slide140150150150150180200225
Max. Awivel of Tool Head60Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R160Lx60R
Speeds & Feeds
DIA iof Clutch Pulley235311311311311405 405405
Range of RAM Speeds
(Stroke Per
Minute)		30, 60, 9017, 25, 50, 7512, 24 48 7212, 24 48, 7210, 24, 45, 7012, 25, 40, 6712, 25, 40, 6710-67
DIA of Motor Pulley7689898989100100100
Range of Table Feed Per Stroke of RAM0.2290.2290.2290.2290.229-0.6870.229-0.6870.229-0.6870.229-0.687
Range of Tool Head FeedHand FeedHand FeedHand FeedHand
Feed		Hand FeedHand FeedHand FeedHand
Feed
Drive & Electrical Equipments
3 Phase Electric Main Drive Motor1.5 HP2 HP3 HP3 HP5 HP5 HP5 HP7.5 HP
Speed RPM960960960960960960960960
V-Belt SectionB-35B-55B-57B-57B-58B-72B-72B-85
Main Switch Starter (Push Button)3.5 AMP3.5 AMP5 AMP5 AMP15 AMP15 AMP15 AMP15 AMP

To enquire about the desired product(s), just check the box and then click “Enquiry Now” button which is provided below.

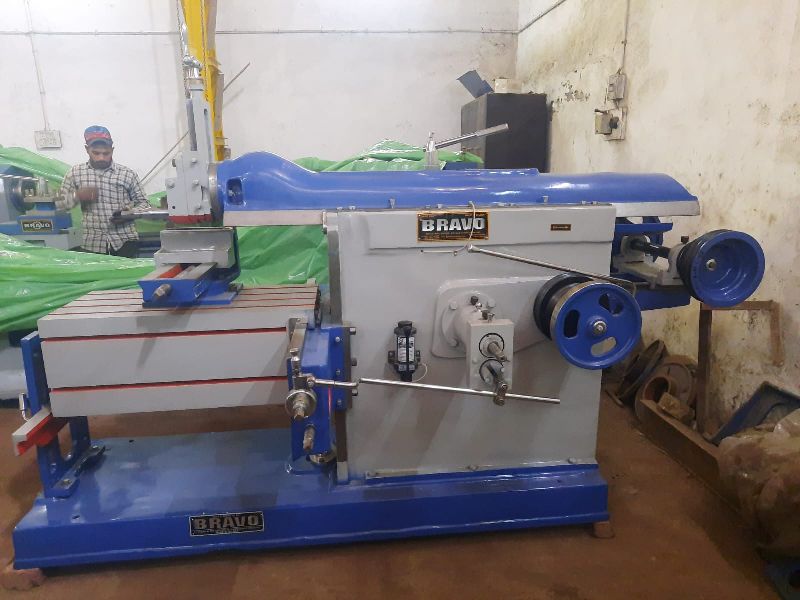

Shaper Machine (Student)

Shaper Machines (Shaper Machine (Student))

zoom {+}

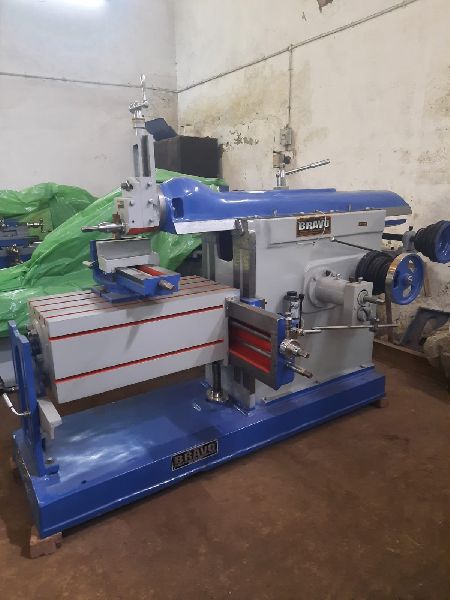

Shaper Machine (Heavy Duty)

Shaper Machines (Shaper Machine (Heavy Duty))

zoom {+}
